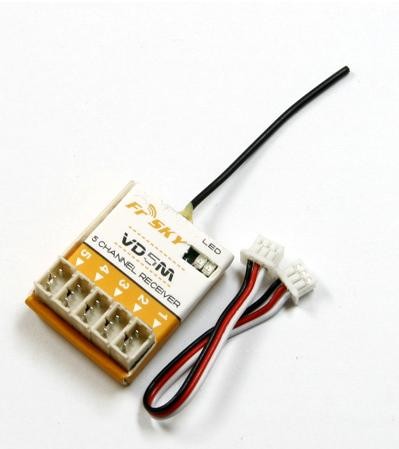

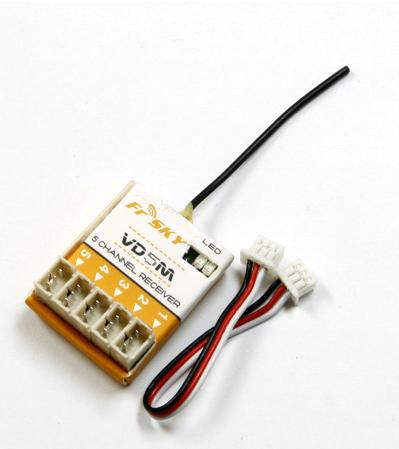

Odbiornik FrSky 2.4GHz VD5M V8 Series

Nowy 5 kanałowy dbiornik VD5M firmy FrSky z telemetrią.  Ze względu na wagę - tylko 2g ! idealny do zastosowania w modelach halowych Zasięg powyżej 300m. Może współpracować z modułami z telemetrią lub bez.
Ocena: (0) 0
Cena:
73,00 zł 73.00
PLN
  • Wysyłka
    Produkt jest w naszym sklepie. Wysyłka termin poniżej
  • W sklepie
    Ilość produktu w naszym sklepie
    0 szt.
  • Dostawa od:
    Minimalny koszt dostawy 1 szt. tego produktu.
    Paczkomaty: 15,90 zł
    Kurier DHL: od 17.90 zł
    15,90 zł
wycofano z oferty
ilość
+
-
szt.
  • Bezpłatna dostawa dotyczy przesyłek DHL i Paczkomaty od 399zł. Nie dotyczy płyt piankowych i balsy
    Darmowa dostawa od 399
  • Zakupione w sklepie internetowym produkty można zwrócić w terminie 14 dni od doręczenia bez podawania przyczyny.
    14 dni
    na zwrot lub wymianę
  • Zaufało nam > 15 tys. Klientów
    • 100% Klientów poleca F3M w Google Opinie Konsumenckie Zakupy Bardzo Dobre 4,9(5)
    • Oferujemy oryginalne wysokiej jakości produkty najlepszych firm z gwarancją producenta lub dystrybutora
    • Współpracujemy z portalem Przelewy24 - bezpieczne i szybkie płatności online
    • Dane osobowe są odpowiedno zabezpieczone podczas przesyłania certyfikatem SSL
    Bezpieczne
    zakupy
Kod produktu: 564
Producent: FrSky
Gwarancja: 12 mies.

Szczegóły produktu

Nowy 5 kanałowy odbiornik VD5M firmy FrSky z telemetrią.  Ze względu na wagę - tylko 2g ! idealny do zastosowania w modelach halowych Zasięg powyżej 300m. Może współpracować z modułami z telemetrią lub bez.



1.1 Compatibility:

Channels Connected by Binding Cable Mode of VD5M FrSky Compatible Modules
CH1 & CH5

V8 Mode

(Non-telemetry)

V8FT, V8JT, V8HT

DFT, DJT, DHT, DHT-U in V8 Mode

(Switch 1 OFF, Switch 2 ON)

CH2 & CH5 D Mode (Telemetry)

DFT, DJT, DHT, DHT-U in D Mode

(Switch 1 OFF, Switch 2 OFF)


1.2 Specifications:
   Dimension: 21*16*5.8mm
   Weight: 2.0g / 1.6g (naked)
   Number of Channels: 5
   Operating Voltage Range: 3.0V-7.2V
   Operating Current: 20mA
   Operating Range: >300M
   Connector Specification: 1.25mm pitch

 1.3 Features
          1)  Super small and light, designed for park flyers and indoor aircrafts;
        2)  Compatible with all FrSky modules (V8 mode & D mode), receive only (VD5M can talk with module of either mode, but it does not send any telemetry information back to the transmitter).

2.Binding Procedure
     2.1 Bind procedure:
     1) Ascertain that the transmitter is in the PPM mode. Turn the transmitter off.
     2) Turn on the transmitter while holding the F/S button on the transmitter module. Release the button. The RED LED on the transmitter module will flash, indicating the transmitter is ready to bind to the receiver.
     3) Connect the provided binding cable to corresponding channels of VD5M (see 1.1 Compatibility chart for details), and connect battery to the receiver. LED on the receiver will flash, indicating the binding process is completed. Turn off both the transmitter and receiver, and disconnect the binding cable from VD5M.
     4) Turn on the transmitter and connect the battery to the receiver. The RED LED on the receiver will indicate the receiver is receiving commands from the transmitter.
   The receiver/transmitter module binding will not have to be repeated, unless one of the two is replaced.



Note: Mak sure corresponding channels are connected by provided binding cable when working with the transmitter module.e


Cena: 73,00 zł 73.00
