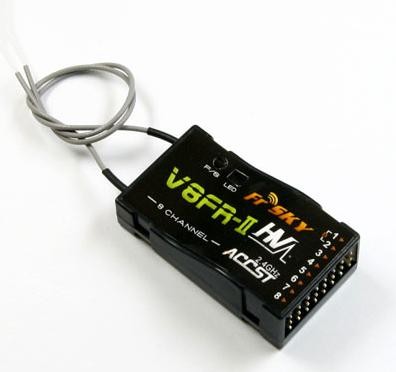

Odbiornik FrSky 2.4GHz V8FR-II HV 8 kanałowy ACCST

Odbiornik V8FR-II HV firmy FrSky - 8 kanałowy. Może współpracować z każdym modułem nadawczym tej firmy.

Zasięg powyżej 1,5km.  Wersja HV umożliwia zasilanie w zakresie 3-16V.

Ocena: (0) 0
Cena:
145,00 zł 145.00
PLN
  • Wysyłka
    Produkt jest w naszym sklepie. Wysyłka termin poniżej
  • W sklepie
    Ilość produktu w naszym sklepie
    0 szt.
  • Dostawa od:
    Minimalny koszt dostawy 1 szt. tego produktu.
    Paczkomaty: 15,90 zł
    Kurier DHL: od 17.90 zł
    15,90 zł
wycofano z oferty
ilość
+
-
szt.
  • Bezpłatna dostawa dotyczy przesyłek DHL i Paczkomaty od 399zł. Nie dotyczy płyt piankowych i balsy
    Darmowa dostawa od 399
  • Zakupione w sklepie internetowym produkty można zwrócić w terminie 14 dni od doręczenia bez podawania przyczyny.
    14 dni
    na zwrot lub wymianę
  • Zaufało nam > 15 tys. Klientów
    • 100% Klientów poleca F3M w Google Opinie Konsumenckie Zakupy Bardzo Dobre 4,9(5)
    • Oferujemy oryginalne wysokiej jakości produkty najlepszych firm z gwarancją producenta lub dystrybutora
    • Współpracujemy z portalem Przelewy24 - bezpieczne i szybkie płatności online
    • Dane osobowe są odpowiedno zabezpieczone podczas przesyłania certyfikatem SSL
    Bezpieczne
    zakupy
Kod produktu: 1049
Producent: FrSky
Gwarancja: 12 mies.

Szczegóły produktu

Odbiornik FrSky V8FR-II HV - 8 kanałowy. Może współpracować z każdym modułem nadawczym tej firmy.

Zasięg powyżej 1,5km.  Wersja HV umożliwia zasilanie w zakresie 3-16V.





  1.1 Compatibility

FrSky modules

How to put V8RF-II into binding mode respectively

V8FT, V8JT, V8HT

V8_Mode (Non-telemetry)

Connect battery to V8FR-II while holding the F/S button on V8FR-II

DFT, DJT, DHT, DHT-U in V8_Mode

(Switch 1 OFF and Switch 2 ON)

DFT, DJT, DHT, DHT-U in D_Mode

(Switch 1 OFF and Switch 2 OFF)

D_Mode (Telemetry)

Connect Ch1 & Ch2 signal pins of V8FR-II by provided jumper and then

connect battery to V8FR-II directly (no need to hold the F/S button on V8FR-II)







2. Specifications

       Dimensions: 44*24*14mm

       Weight: 9.3g

       Operating Voltage Range: 3.0~16.0V (HV version)

       Operating Current: 30mA

       Specified Range: full range (>1.5km)

     1.3 New feature of V8FR-II over V8FR-HV

      Compatible with all FrSky modules (V8_mode & D_mode), receive only (V8FR-II can talk with module of either mode, but it does not send telemetry information back to the transmitter).

2. Set Up

     2.1 Bind procedure

     1)  Turn on your transmitter and switch it to PPM mode. Turn the transmitter off.

     2)  Turn on the transmitter while holding the F/S button on the transmitter module. Release the button. The RED LED on the transmitter module will flash, indicating the transmitter is ready to bind to the receiver.

     3)  Put V8FR-II into binding mode (see 1.1 Compatibility chart for details), the LED on V8FR-II will flash, indicating the binding process is completed.

     4)  Turn off both the transmitter and V8FR-II (and disconnect the jumper from V8FR-II after binding with telemetry module in D_Mode).

     5)  Turn on the transmitter and connect the battery to V8FR-II, The GREEN LED on the receiver will indicate the receiver is receiving commands.

     The transmitter module/receiver binding will not have to be repeated, unless one of the two is replaced.

     2.2 Range check

     A pre-flight range check should be done before each flying session. Reflections from nearby metal fences, concrete building or trees can cause loss of signal both during range check and during the flight.

The following steps are to be followed to perform the range check of the model before the flight:

     1)  Place the model at least 60cm (two feet) above non-metal contaminated ground (e.g. on a wooden bench).

     2)  The receiver antennas should be separated in the model, and do not touch the ground.

     3)  Place the antenna of the transmitter in a vertical position.

     4)  Turn on the transmitter and the receiver, press the F/S button of the transmitter module for 4 seconds to enter range check mode, the RED LED of the transmitter module will be off, GREEN LED will flash rapidly. The effective distance will be decreased to 1/30 of full range.

     5)  Walk away from the model while simultaneously operating the controls on the transmitter, confirming that all controls operate normally to a distance of at least 30 meters (~30 yds).

     6)  Press the F/S button of the transmitter module for 1S-4S to exit range check mode, RED LED will be back on, indicating normal operation is back.

     2.3 Failsafe setting

      Failsafe is a useful feature in which all controls move to a preset position whenever the control signal is lost for a period of time. V8FR-II supports failsafe function for all channels.

Follow the steps below to set failsafe positions for each channel:

     1)  Bind the receiver first and turn on both the transmitter and the receiver;

     2)  Move the controls to the desired failsafe position for all channels;

     3)  Press briefly the F/S button on the receiver (less than 1 second). The GREEN LED of the receiver will flash twice, indicating the failsafe position has been set in the receiver.

     To disable the failsafe function, just re-bind the receiver.



Failsafe is recommended to set when system is firstly used, or receiver has been re-bound. Follow steps below to set failsafe.

Option-1. How to set failsafe to a user-determined state on lost signal:

1) Bind the receiver to the transmitter module first and turn on both the transmitter and the receiver;

2) Move the controls to desired failsafe position for all channels;

3) Press briefly the F/S button on the receiver and you are done.



Option-2. How to set failsafe for no pulses on lost signal:

1) Just press briefly the F/S button on the receiver while the transmitter is off and you are done.

Note: If failsafe is not set, failsafe default will hold last position before signal is lost. In this case, there exists risk that your model will fly away or cause injury.
